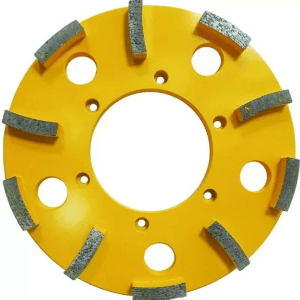

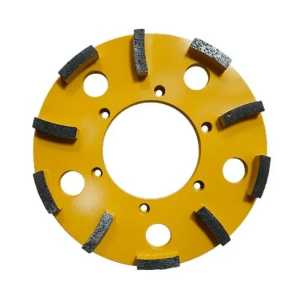

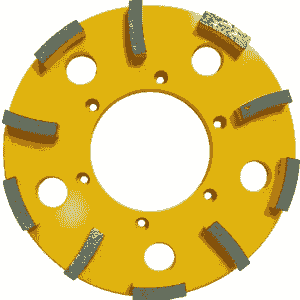

The grit 30 soft bond diamond grinding wheel from MDW is suitable for the Eibenstock concrete grinder EBS 235.1 and is ideal for grinding screed

grit 30 soft bond is used for hard concrete



in order to get the best grinding result, pleawse choose the right bond type.

if you do not know which bond to choose, please refer to below.

The “rule of thumb” to get you the best possible concrete is:  soft concrete requires hard bond diamonds and hard concrete needs soft bond diamonds;

Metal Bond Tooling Guide:

For Matching the Correct Diamond Bond Hardness to Concrete Hardness.

Very Hard Concrete (6,000-8,000 PSI) ----------- Extra Soft Bond Diamonds

Hard Concrete (5,000-6,000 PSI) ------------ Soft & Extra Soft Bond Diamonds

Medium Concrete (3,500 – 5,000 PSI ) ------------ Medium Bond Diamonds

Soft Concrete (3,500 PSI and under) ------------ Hard Bond Diamonds

1. Soft floor = Hard Bond Diamonds
2. Medium floor = Medium Bond Diamonds
3. Hard floor = Soft Bond Diamonds
4. Very Hard floor = Extra Soft Diamonds

Features:
The sanding disc is only suitable for the Eibenstock concrete grinder EBS 235.1.
It grinds screed easily.
The unique segment with a very hard bond ensures reliable removal with a very good service life.
Manufactured and tested to EN13236

Application:
screed
Abrasive Flooring

Technical details:
Diameter: 235 mm.
Inner diameter: 100 mm.
Number of secondary holes: 6.
Number of segments: 10
